ILL-IGUA0155
Short Description
GENERAL INFORMATIONS
Model No. ILL-IGUA0XX155 Series

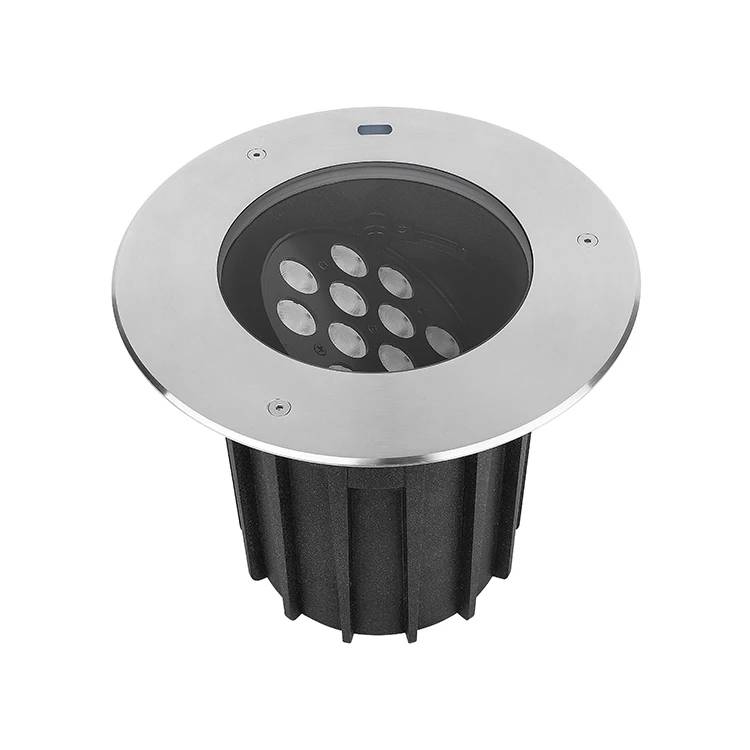

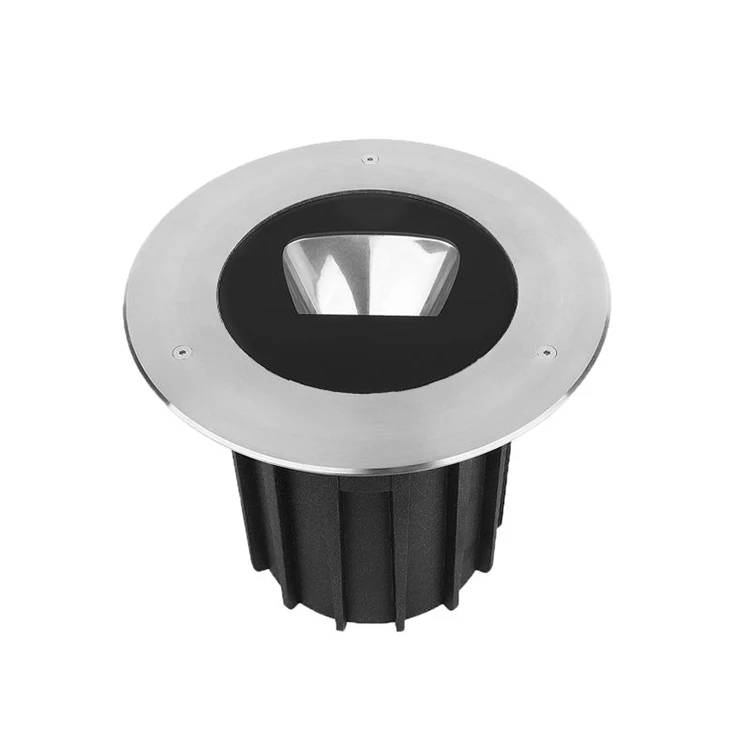

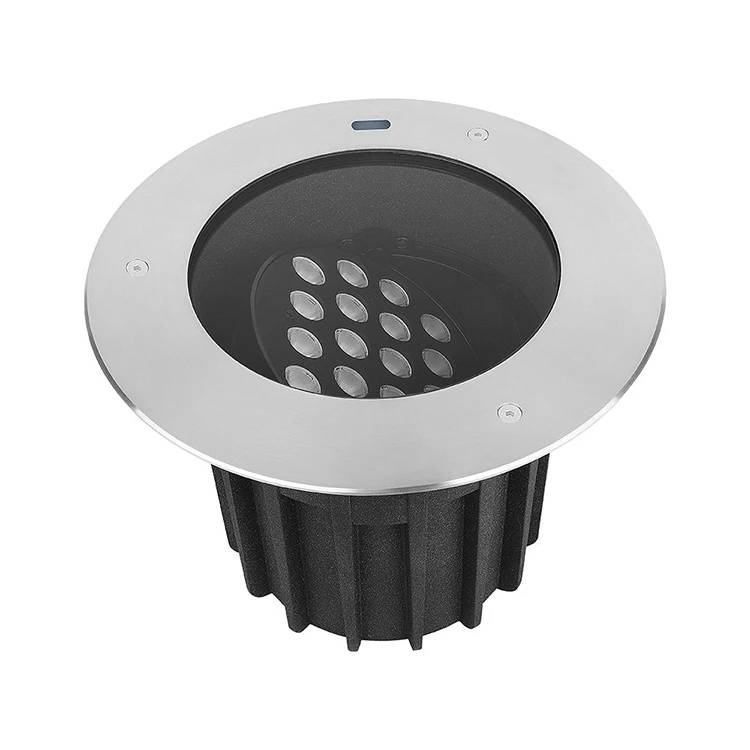

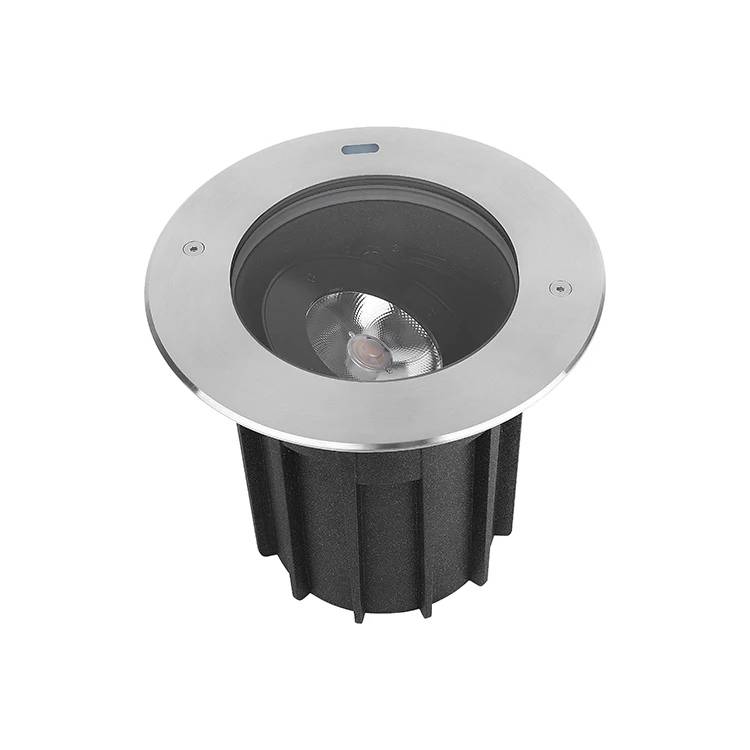

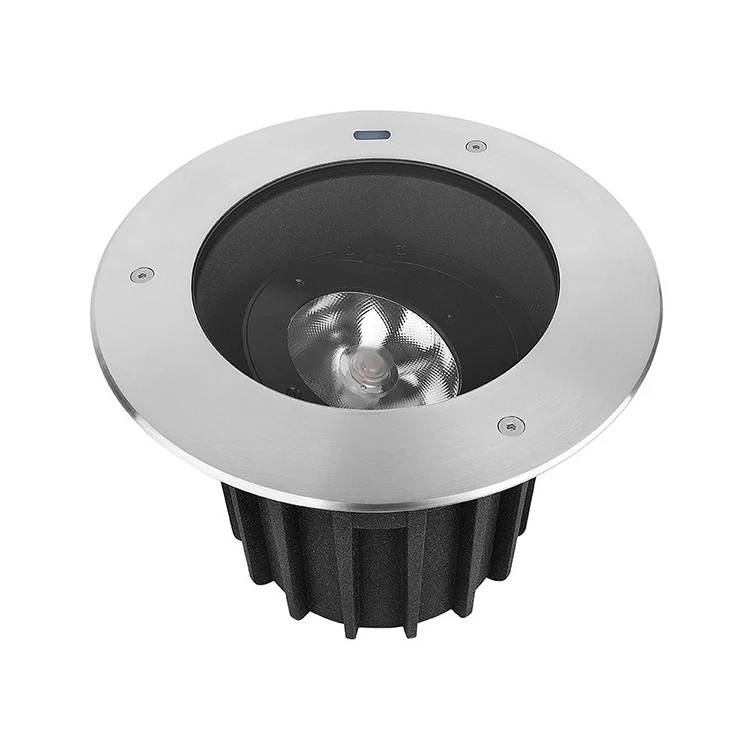

Product Family-Inground Adjustable Up light
Application Area-Outdoor
Material and Finish (Body)-Die -Cast Aluminum+ Stainless Steel 316
Diffuser -Clear Glass
IP Level-IP67
Working temperature--20°C~50°C
Working hour-50000 Hrs
ELECTRICAL PARAMETERS
Input voltage- 24Vdc/120-270 VAC, 50/60 Hz
Power-3W,8W18W,24W,36W
Control Type-On/ Off , Dimmable
OPTICAL PARAMETERS
Light Source-LED
Color Temperature (CCT)-2700K - 6500K,RGB,RGBW
Color Rendering Index (CRI)- >80
WARRANTY
5 years Warranty
Specification
ILL-IGUA003155
:3W-225lm-Ø130*139-IP67
ILL-IGUA008155
:8W-600lm-Ø130*139-IP67
ILL-IGUA018155
:18W-1350lm-Ø173*156-IP67
ILL-IGUA024155
:24W-1800lm-Ø210*176-IP67
ILL-IGUA036155
:36W-270lm-Ø250*188-IP67
