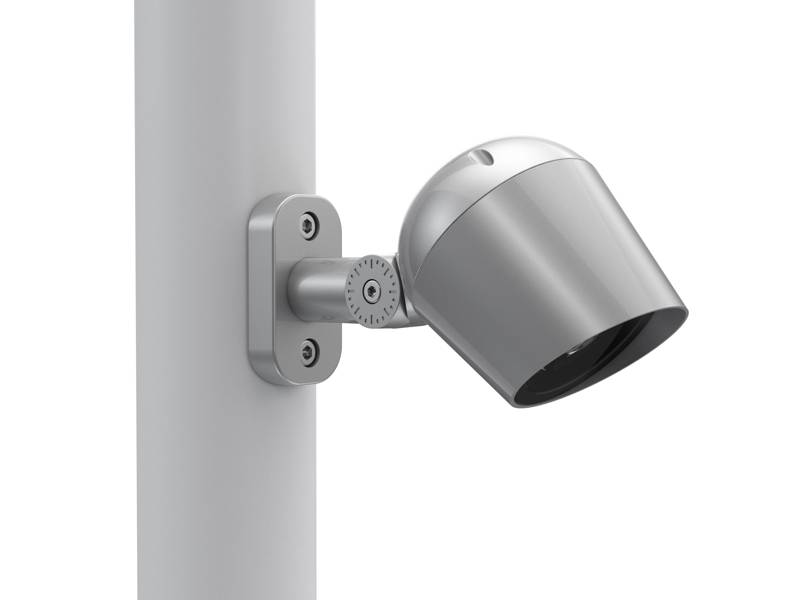

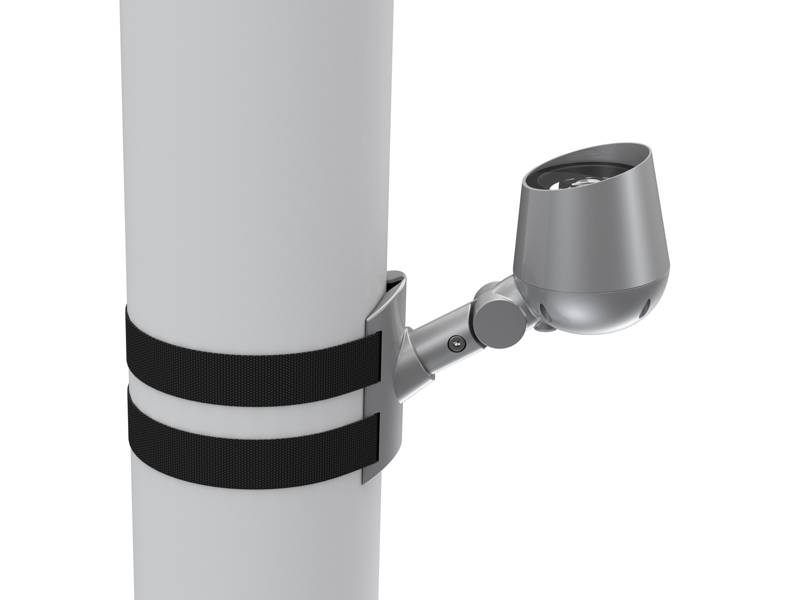

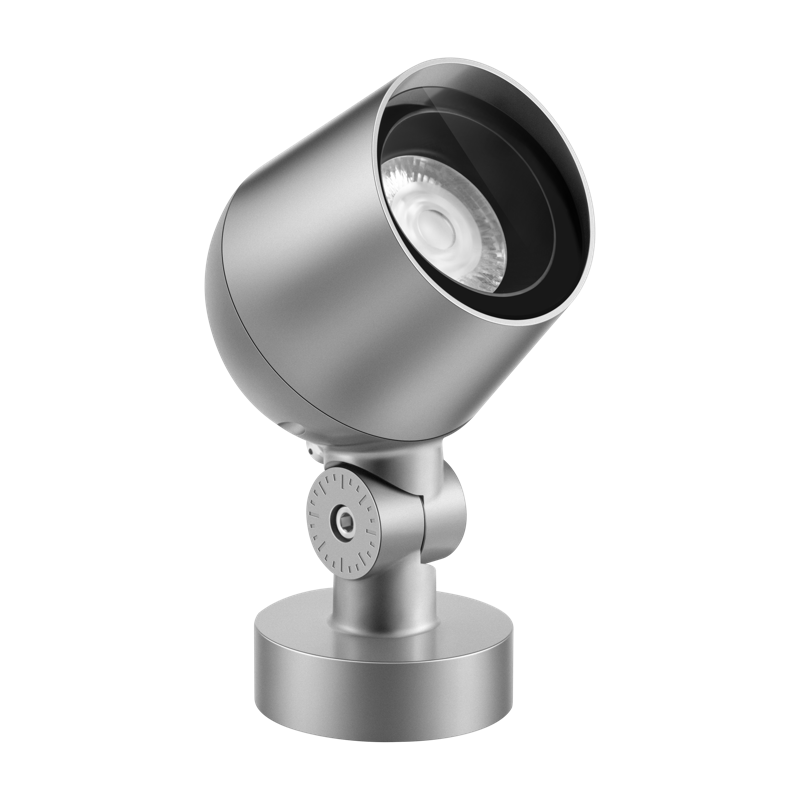

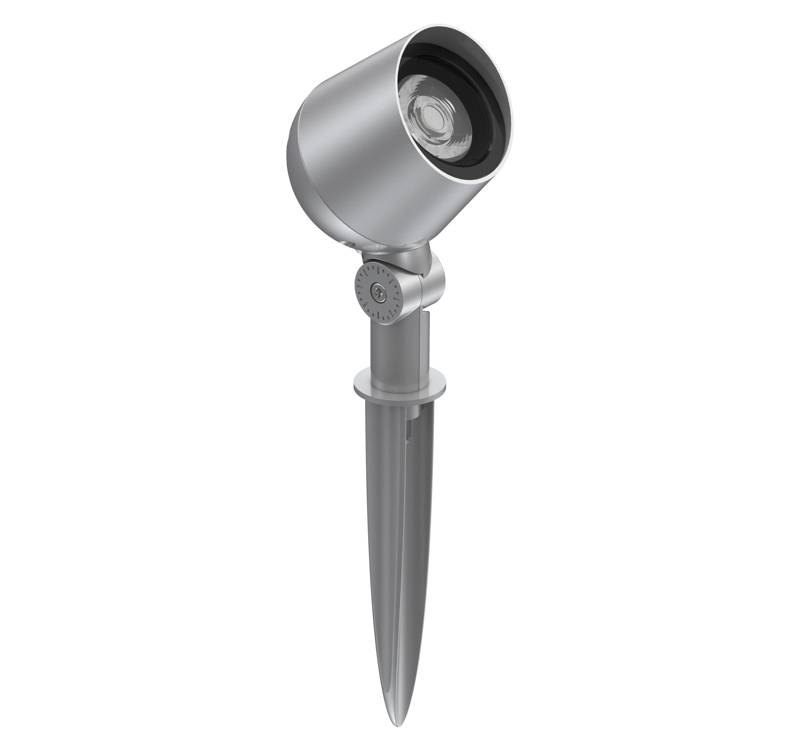

ILL-SPK112C-3
Short Description
GENERAL INFORMATIONS
Model No.ILL-SPK112XXC-3 Series
Product Family-Spike Light
Application Area-Outdoor
Material and Finish (Body)-Die-cast / Stainless Steel
IP Level-IP66
Working temperature--20°C~50°C
Working hour-50000 Hrs (80000Hrs on request)
ELECTRICAL PARAMETERS
Input voltage-120-270 VAC, 50/60 Hz/24Vdc
Power-10W,15W
Control Type-On/ Off , Dimmable
OPTICAL PARAMETERS
Light Source-LED
Color Temperature (CCT)-2700K - 6500K
Color Rendering Index (CRI)->80,>90
Beam Angle-2.5°,6°,12°,30°,45°,60°
Luminous output-80lm/W ( ± 5 %)
WARRANTY
5 years Warranty
CERTIFICATES
CE
Specification
ILL-SPK11210C-3
:10W-800lm-Ø100*W 113*H176-IP66
ILL-SPK11215C-3
:15W-1200lm-Ø100*W 113*H176-IP66
