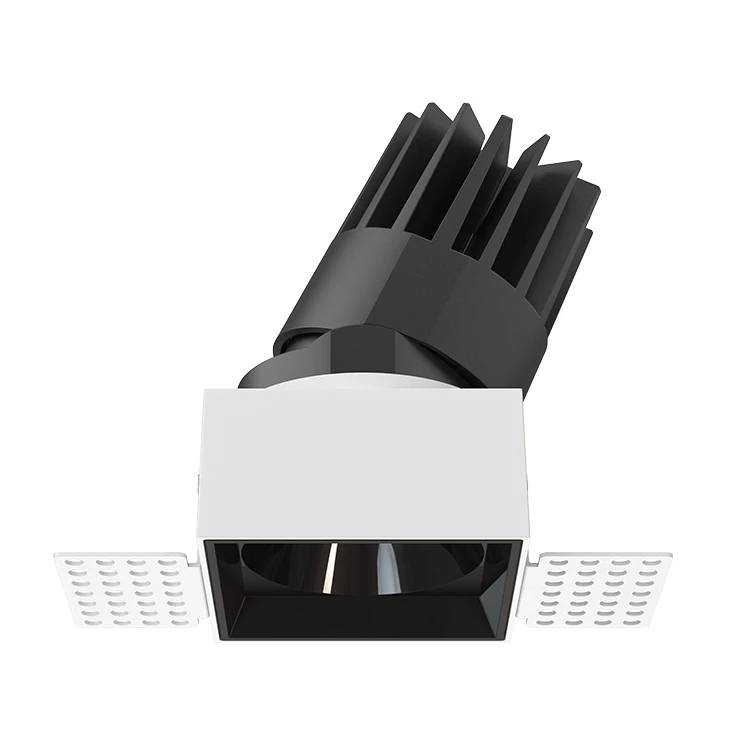

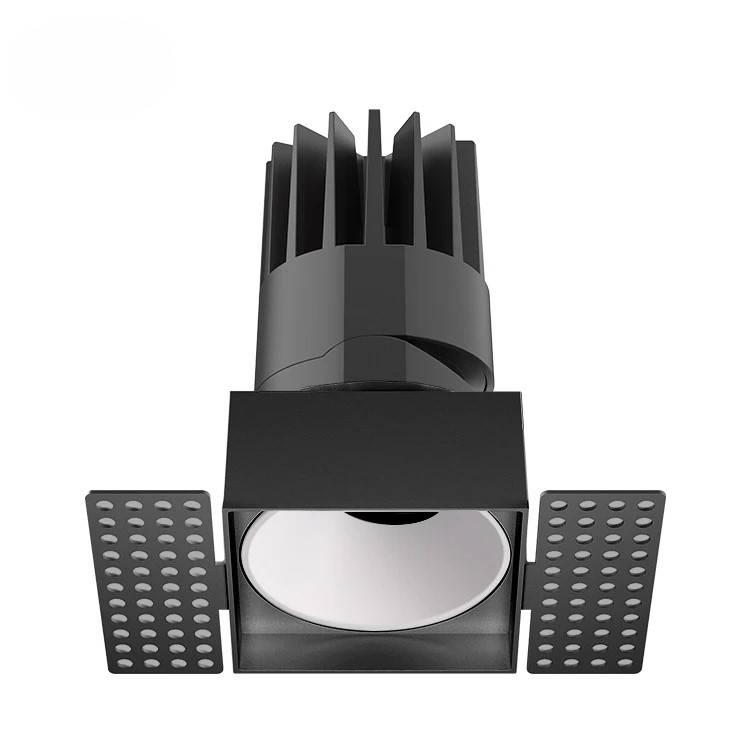

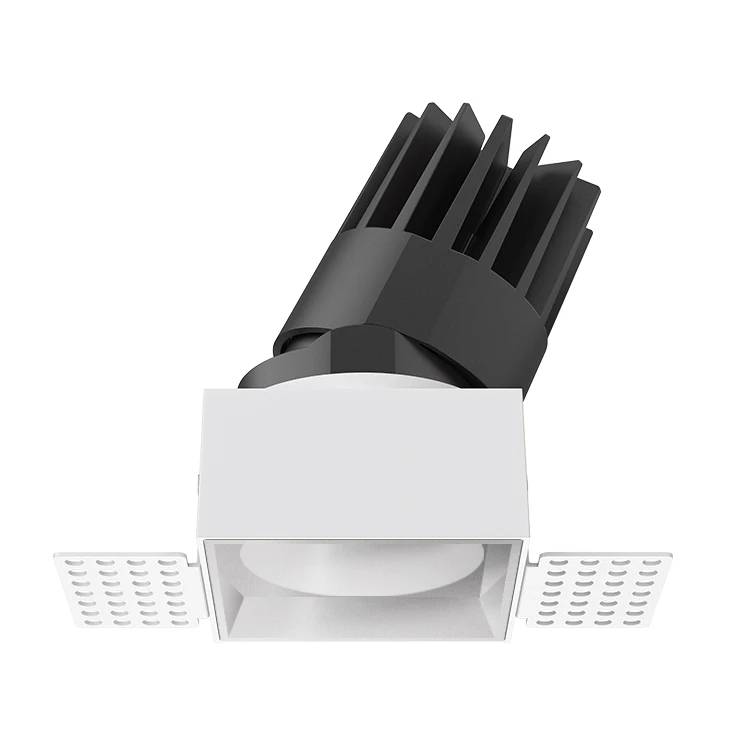

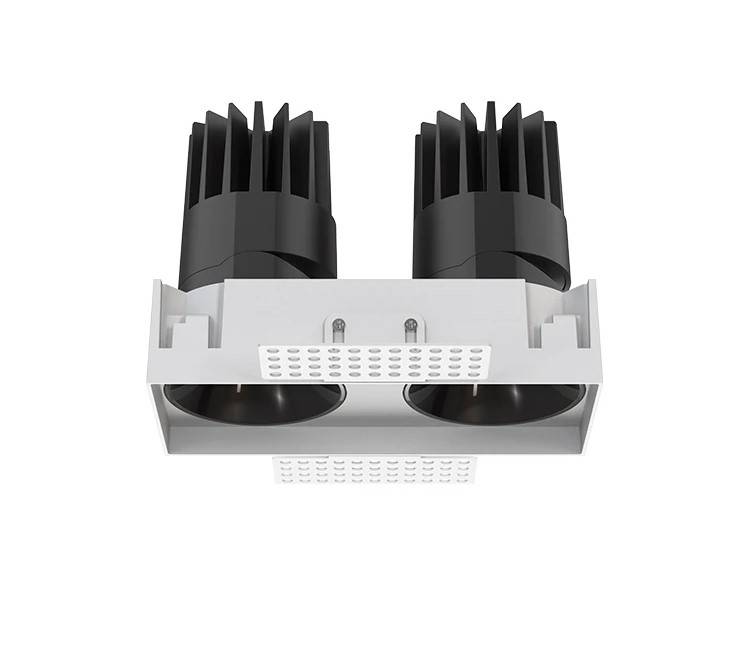

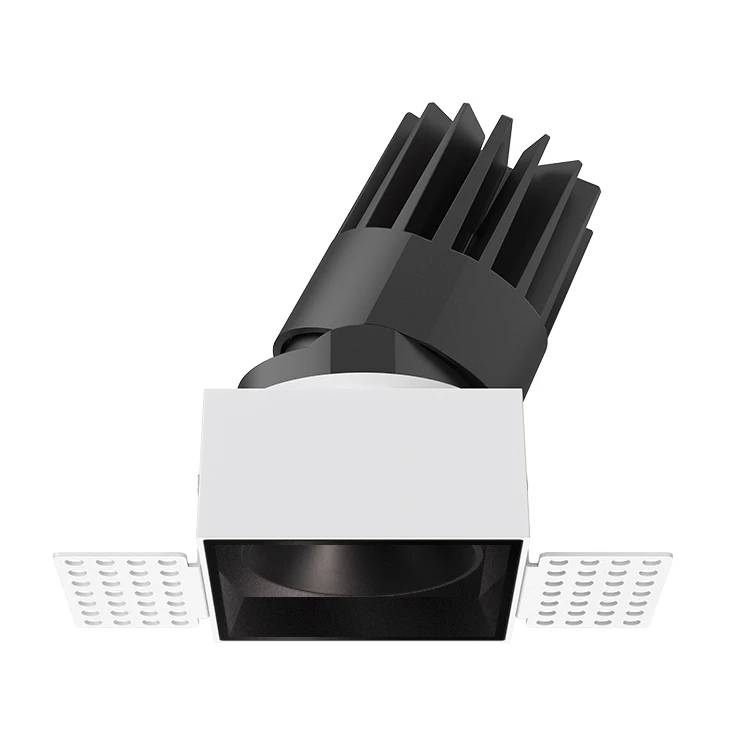

ILL-TSL36-S
Square Trimless Adjustable Spot Light
Short Description
GENERAL INFORMATIONS
Model No. ILL-TSL0XX36-S Series
Product Family-Trimless Spot Light
Application Area-Indoor
Material and Finish (Body)-Die -Cast Aluminum, White, Black

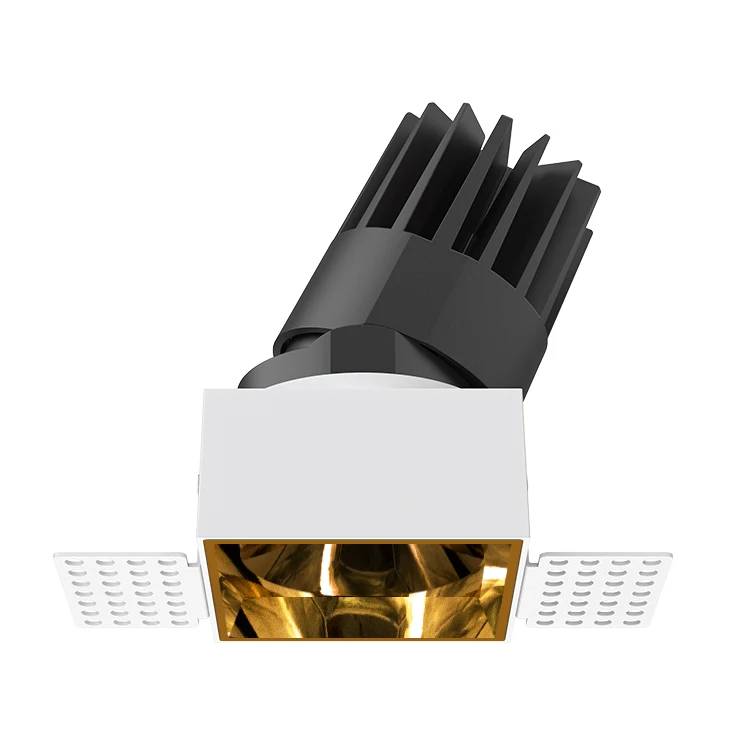

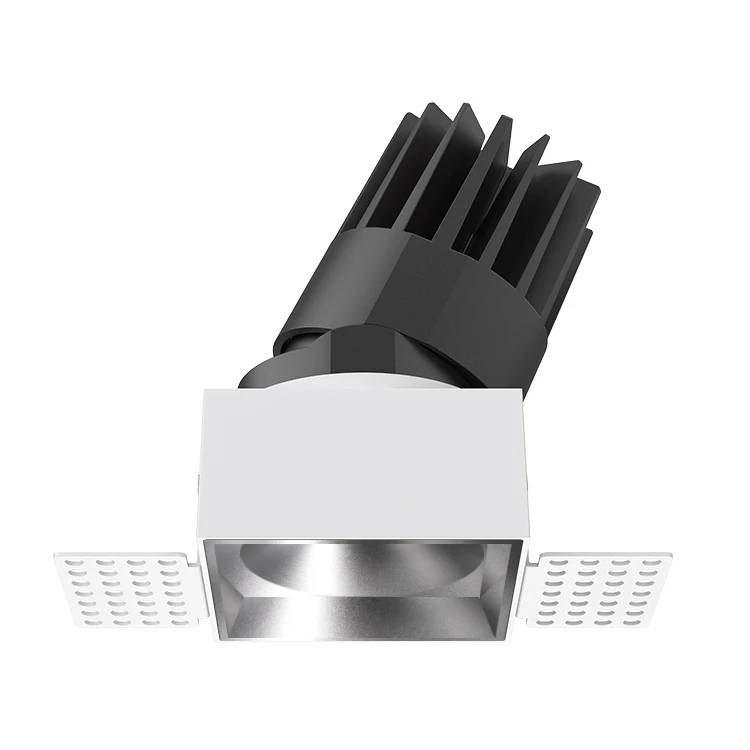

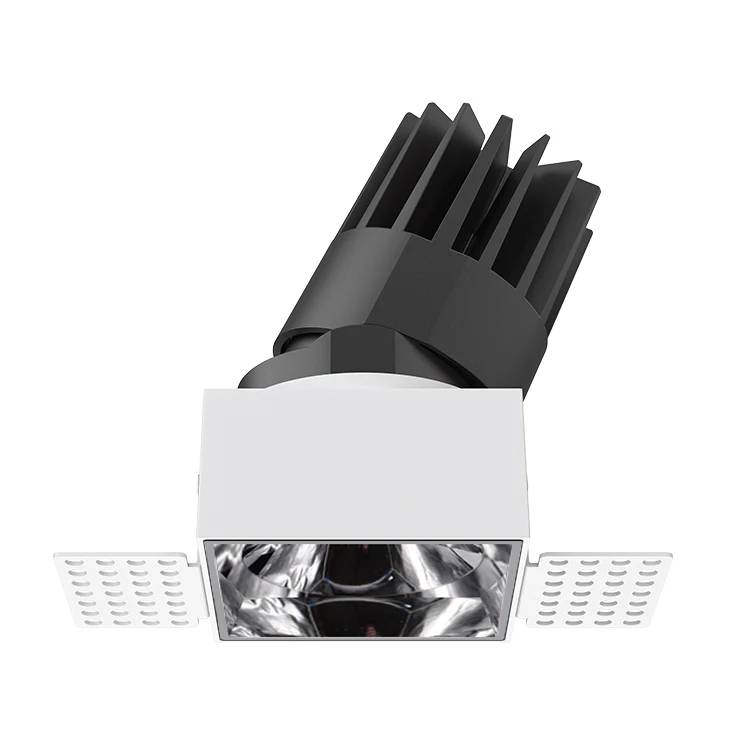

Material and Finish (Reflector)-Multiple Options available
IP Level-IP20/65
Working temperature--20°C~50°C
Working hour-50000 Hrs (80000Hrs on request)
ELECTRICAL PARAMETERS
Input voltage-120-270 VAC, 50/60 Hz
Power-8W,10W,15W,18W,20W,25W
Control Type-On/ Off , Dimmable
OPTICAL PARAMETERS
Light Source-LED COB
Color Temperature (CCT)-2700K - 6500K
Color Rendering Index (CRI)->80,>90
Beam Angle-15°, 24°, 36°,60°
Luminous output-100lm/120lm/W ( ± 5 %)
WARRANTY
5 years Warranty
CERTIFICATES
CE
