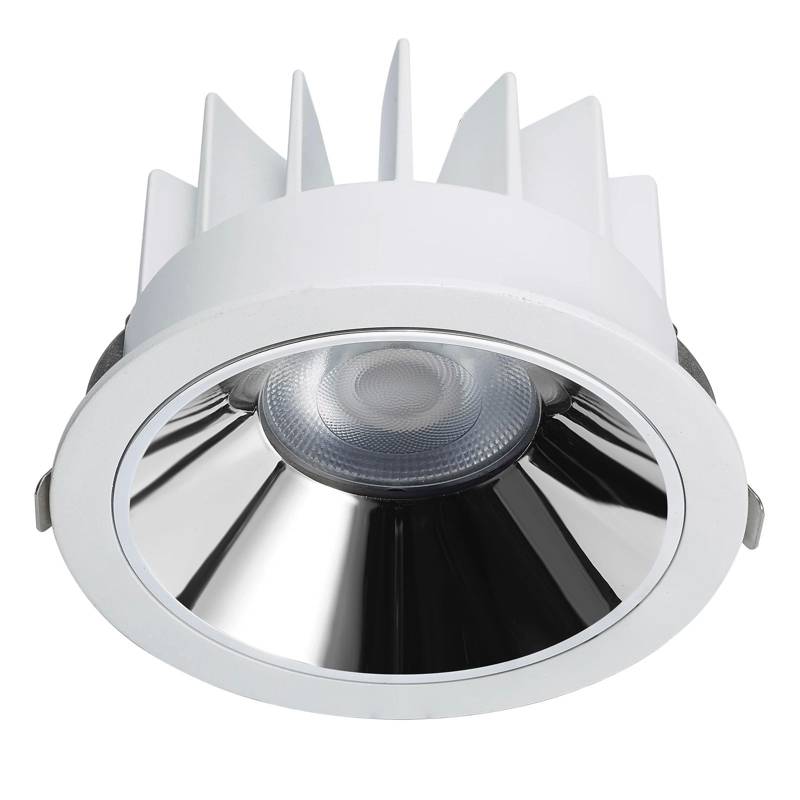

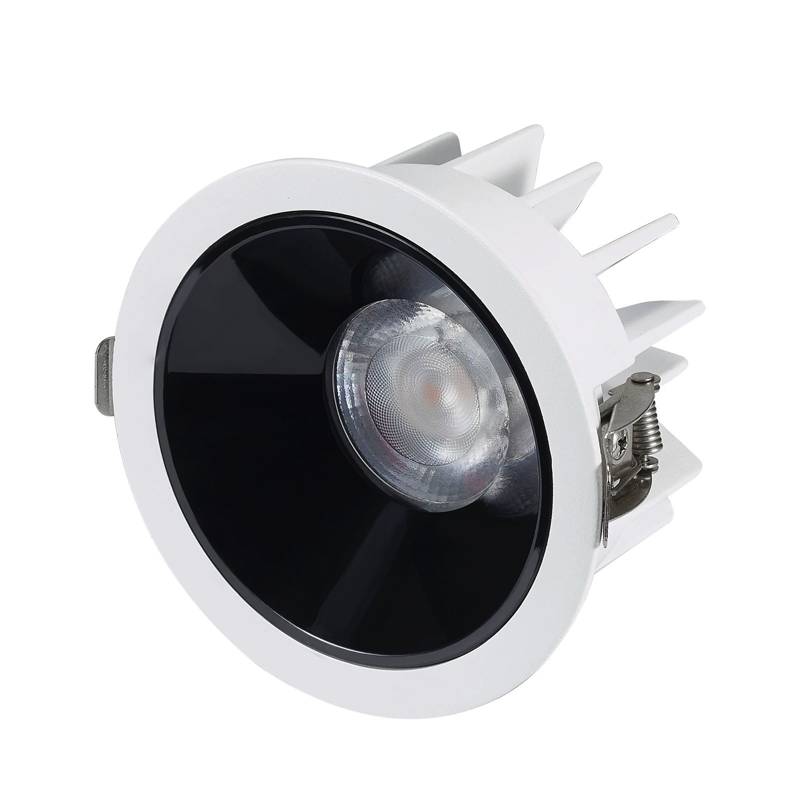

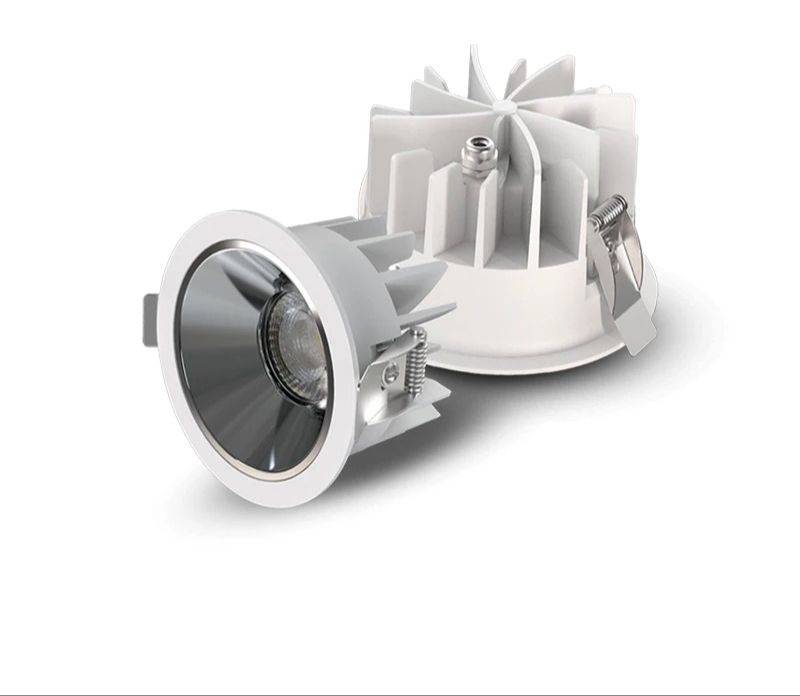

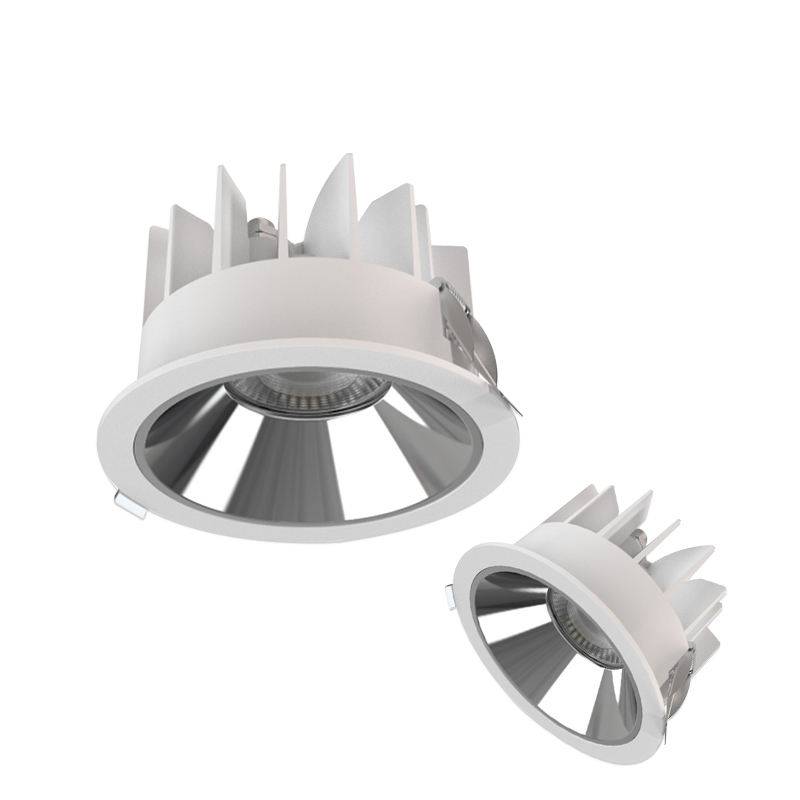

ILL-DL22
Model No-ILL-DL0XX22-Series
Product Family-Downlight
Application Area-Indoor
Material and Finish (Body)-Die -Cast Aluminum, White, Black
IP Level- IP54/65
Working temperature- -20°C~50°C
Working hour- 50000 Hrs (80000Hrs on request)
ELECTRICAL PARAMETERS
Input voltage-120-270 VAC, 50/60 Hz
Power- 10W,12W,18W,25W,30W,40W,50W,
Control Type-On/ Off , Dimmable
OPTICAL PARAMETERS
Light Source- LED COB
Color Temperature (CCT)- 2700K - 6500K
Color Rendering Index (CRI)- >80,>90
Beam Angle- 15°,30°,38°,60°
UGR- <19 , <22
Luminous output- 100lm/W ( ± 5 %)
SDCM- <3, <5
WARRANTY
5 years Warranty
CERTIFICATES
CE
Key Features
Specifications
Product Code
ILL-DL22
Product Type
