ILL-FLCOB-W5

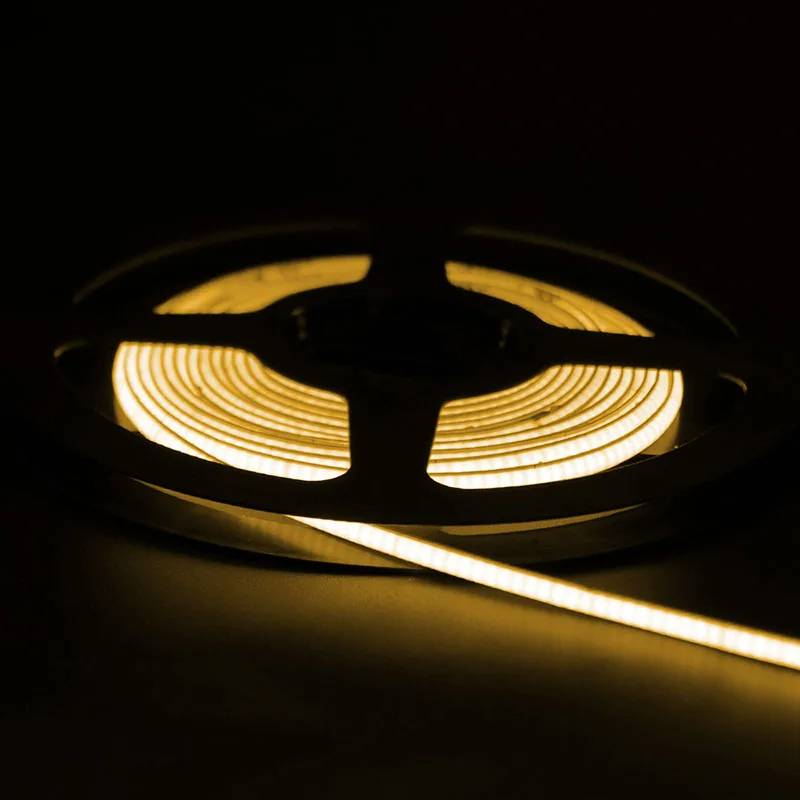

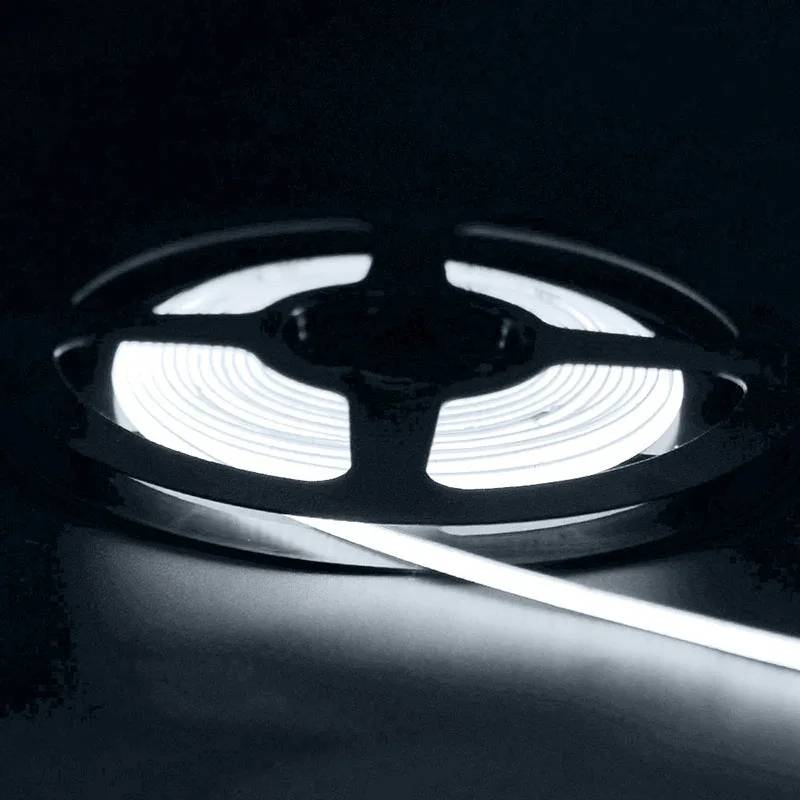

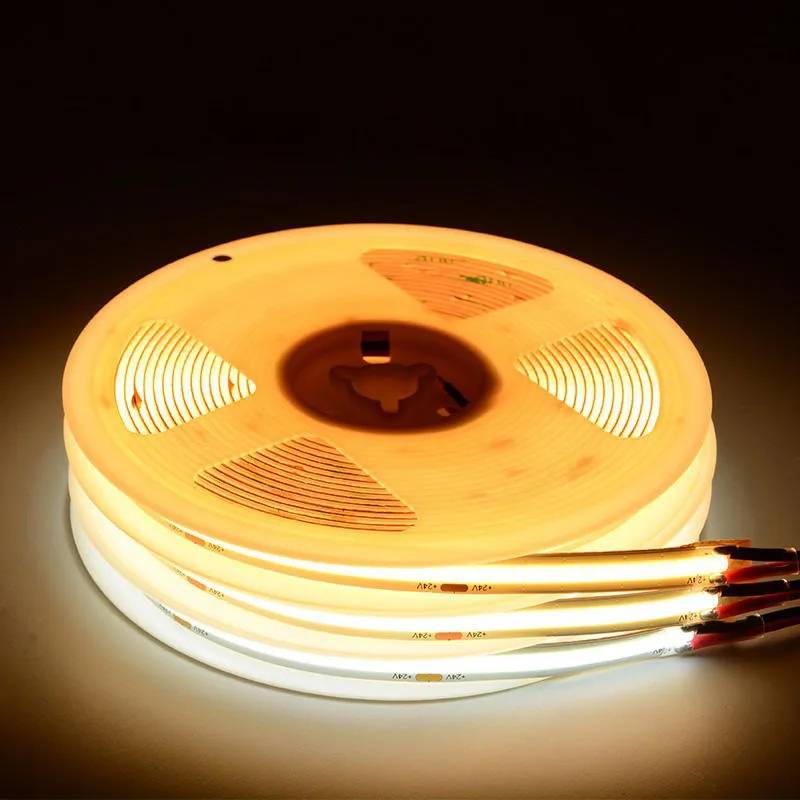

The ILL-FLCOB Series is a premium linear lighting solution engineered with advanced Chip-on-Board (COB) LED technology, delivering a seamless, dot-free illumination effect for modern architectural and decorative applications.
GENERAL INFORMATIONS
Model No.ILL-FLCOB-CV24480-W5
Product Family-COB Strip Light
Application Area-Indoor/Outdoor
IP Level-IP20/65/68
Working temperature--20°C~50°C
Working hour-50000 Hrs
ELECTRICAL PARAMETERS
Input voltage-12 / 24 VDC
Power-5W
Control Type-On/ Off , Dimmable
OPTICAL PARAMETERS
Light Source-LED COB
Color Temperature (CCT)-2700K - 6500K
Color Rendering Index (CRI)->80,>90
Beam Angle-120°
Luminous output-80lm/W ( ± 5 %)
SDCM- <3, <5
WARRANTY
5 years Warranty
CERTIFICATES
CE,TUV
