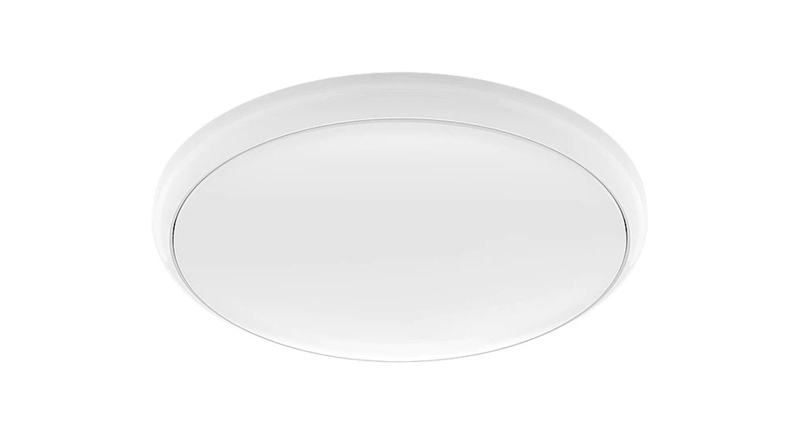

ILL-BHED355
Short Description
GENERAL INFORMATIONS
Model No.ILL-BHED355-XX Series
Product Family-Bulkhead Light
Application Area-Indoor /Outdoor
Material and Finish (Body)-Polycarbonate, White
IP Level-IP65
Working temperature--20°C~50°C
Working hour-50000 Hrs (80000Hrs on request)
ELECTRICAL PARAMETERS
Input voltage-120-270 VAC, 50/60 Hz/24Vdc
Power-20W
Control Type-On/ Off , Dimmable
OPTICAL PARAMETERS
Light Source-LED SMD
Color Temperature (CCT)-2700K - 6500K
Color Rendering Index (CRI)->80,>90
Beam Angle-120°
Luminous output-135lm/W ( ± 5 %)
WARRANTY
5 years Warranty
CERTIFICATES
CE
Specification
ILL-BH-14020
:20W- 270 0lm- Ø435*H102-IP65
