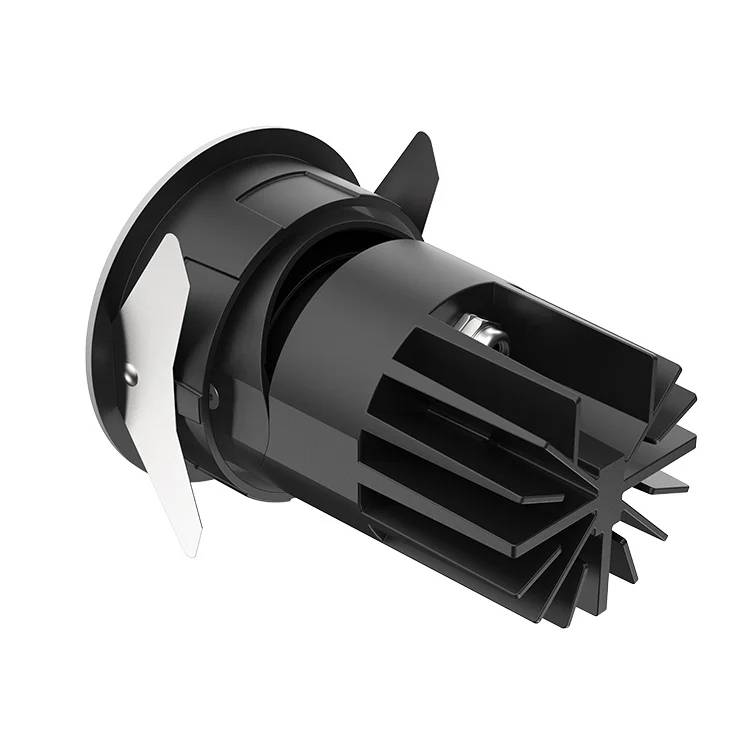

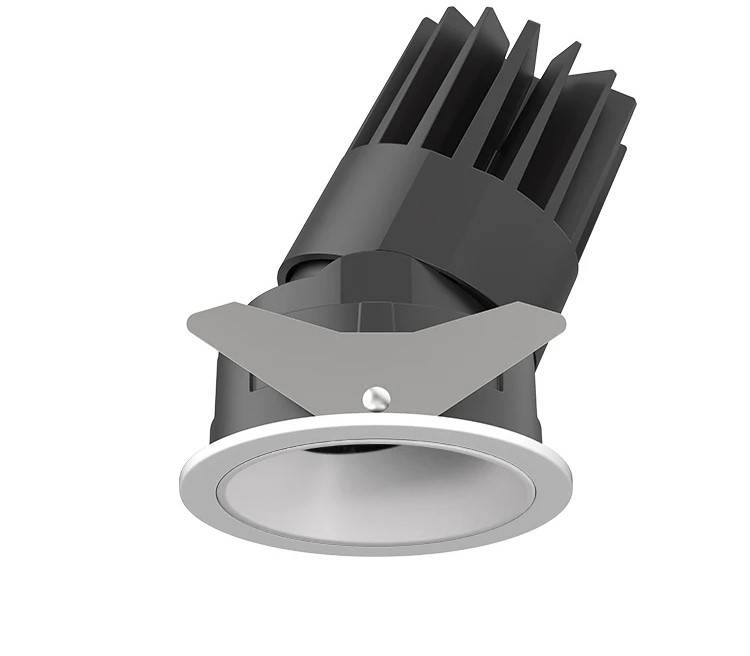

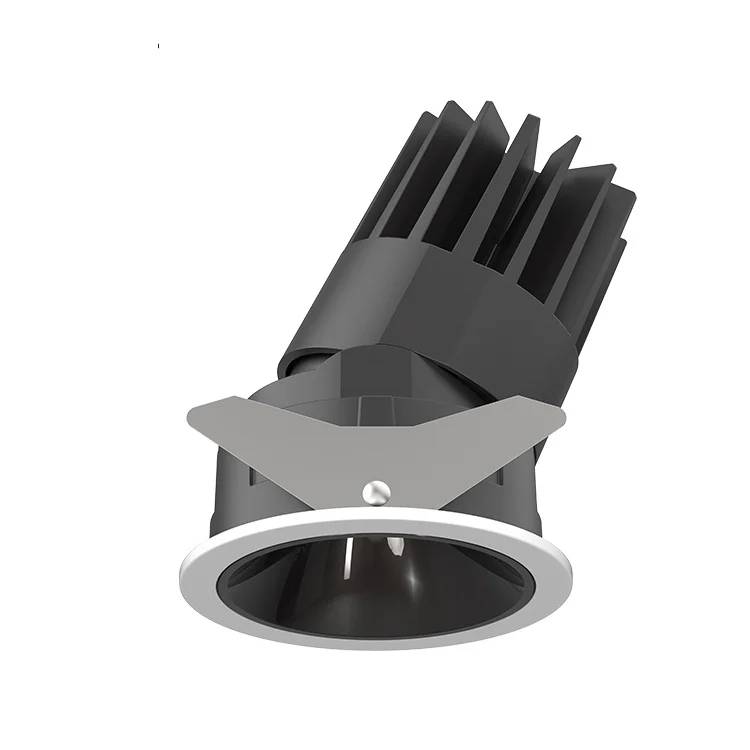

ILL-SL36R
Short Description
GENERAL INFORMATIONS
Model No. ILL-SL0XX36-R Series
Product Family-Spot Light
Application Area-Indoor
Material and Finish (Body)-Die -Cast Aluminum, White, Black

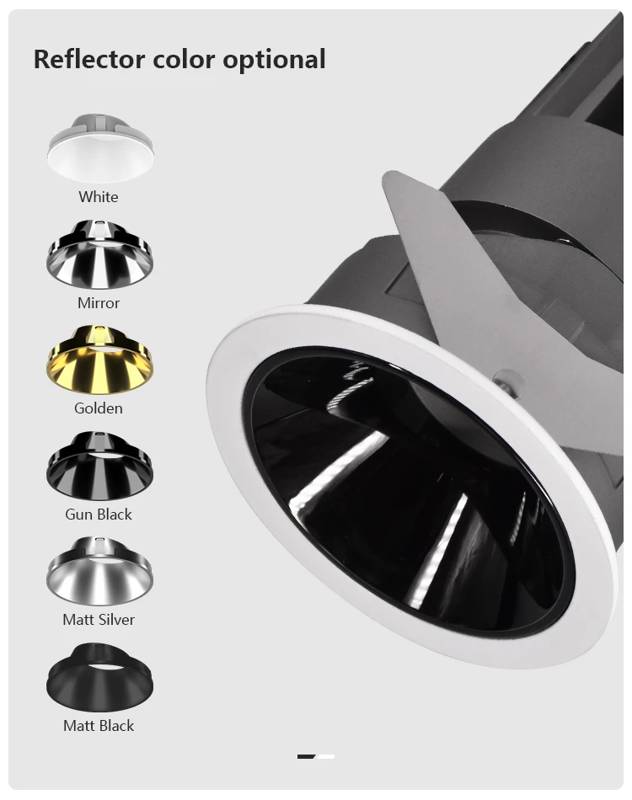

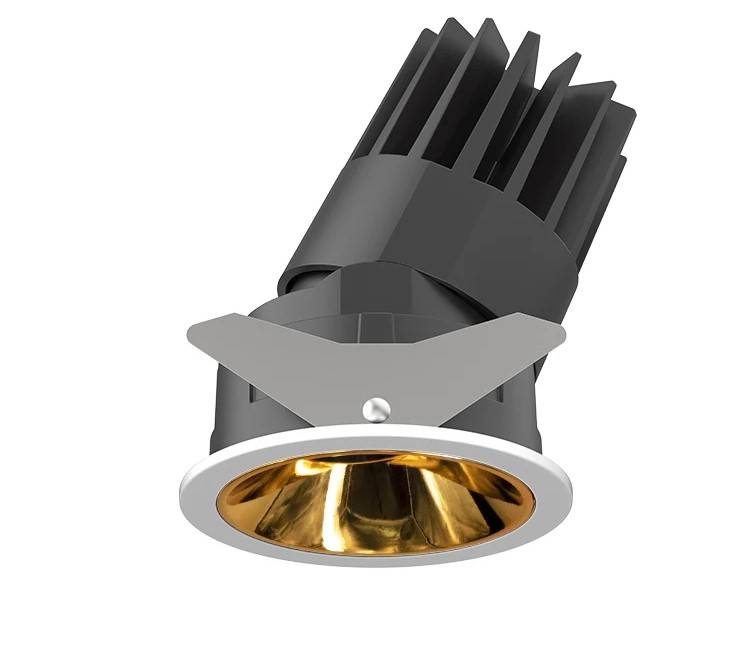

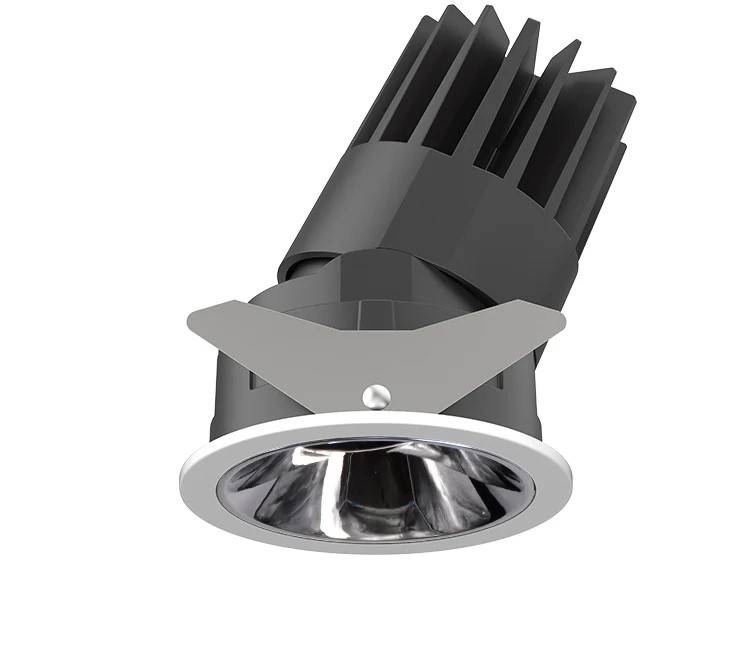

Material and Finish (Reflector)-Multiple Options available
IP Level-IP20/65
Working temperature--20°C~50°C
Working hour-50000 Hrs (80000Hrs on request)
ELECTRICAL PARAMETERS
Input voltage-120-270 VAC, 50/60 Hz
Power-8W,10W,15W,18W,20W,25W
Control Type-On/ Off , Dimmable
OPTICAL PARAMETERS
Light Source-LED COB
Color Temperature (CCT)-2700K - 6500K
Color Rendering Index (CRI)->80,>90
Beam Angle-15°, 24°, 36°,60°
Luminous output-100lm/120lm/W ( ± 5 %)
WARRANTY
5 years Warranty
CERTIFICATES
CE
Specification
ILL-SL00836R
:8W,960lm,Ø62*H85,Ø55,IP20/65
ILL-SL01036R
:10W,1200lm,Ø62*H85,Ø55,IP20/65
ILL-SL01536R
:15W,1350lm,Ø85*H95,Ø75,IP20/65
ILL-SL01836R
:18W,2160lm,Ø85*H110,Ø75,IP20/65
ILL-SL02536R
:25W,3000lm,Ø105*H130,Ø95,IP20/65
