ILL-SL06

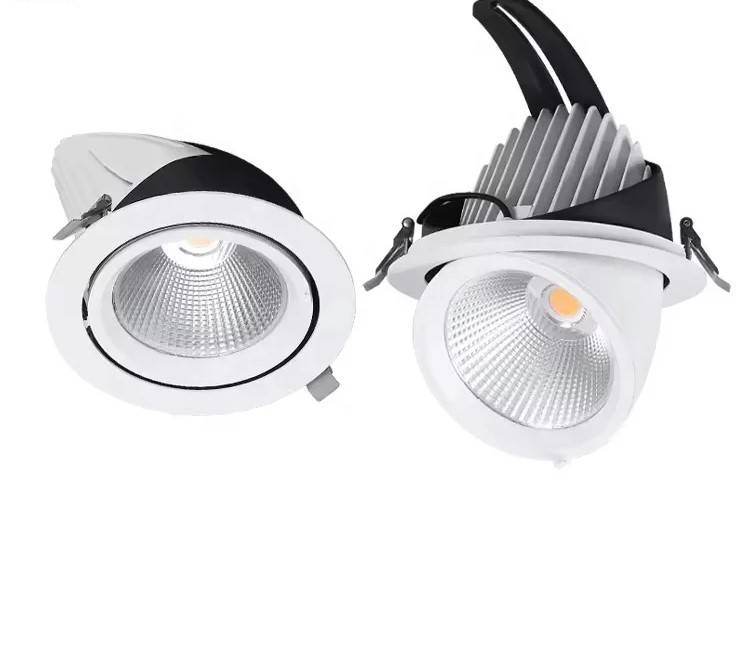

Adjustable Spot Light

Short Description

The ILL-SL0XX06 Adjustable Spotlight Series is engineered to provide versatile, high-quality lighting for various environments. Designed for precision, the spotlight allows you to direct light exactly where needed, making it ideal for highlighting artwork, architectural features, or any focal point within a space. With advanced LED technology, exceptional energy efficiency, and a sleek, modern design, this series offers flexible lighting solutions for both residential and commercial applications.

GENERAL INFORMATIONS

Model No.ILL-SL0XX06

Product Family- Adjustable Spot Light

Application Area-Indoor

Material and Finish (Body)-Die -Cast Aluminium, White,Black

Material and Finish (Reflector)-Not Applicable

IP Level-IP20

Working temperature--20°C~50°C

Working hour-50000 Hrs

ELECTRICAL PARAMETERS

Input voltage- 120-270VAC, 50/60Hz

Power- 12W,15W,25W,30W,40W,50W

Control Type- On/Off, Dimmable

OPTICAL PARAMETERS

Light Source-LED COB

Color Temperature (CCT)-2700K-6500K

Color Rendering Index (CRI)->80,>90

Beam Angle- 15°, 24°, 38°, 60°

Luminous output-100lm/W ( ± 5 %)

WARRANTY

5 years Warranty

CERTIFICATES

Specification

ILL-SL01206

12W- 1200lm- Ø90*H60- Ø75

ILL-SL01506

15W- 1500lm- Ø102*H80- Ø90

ILL-SL02506

25W- 2500lm- Ø125*H108- Ø110

ILL-SL03006

30W- 3000lm- Ø140*H115- Ø120

ILL-SL04006

40W- 4000lm- Ø160*H135- Ø145

ILL-SL05006

50W- 5000lm- Ø170*H145- Ø155
