ILL-BH-LU-3520
ILL-BH-LU-3520 Series is a robust and versatile LED bulkhead luminaire constructed with a rugged housing and high-transmission diffuser, the fixture delivers consistent, glare-free lighting. Its IP65-rated design offers excellent protection against dust and water ingress, making it ideal for harsh weather and industrial conditions. Bulkhead lights are specifically designed for wall or ceiling mounting in environments where durability and moisture resistance are essential.
GENERAL INFORMATIONS
Model No.ILL-BH-LU-3520 Series
Product Family-Bulkhead Light
Application Area-Indoor /Outdoor

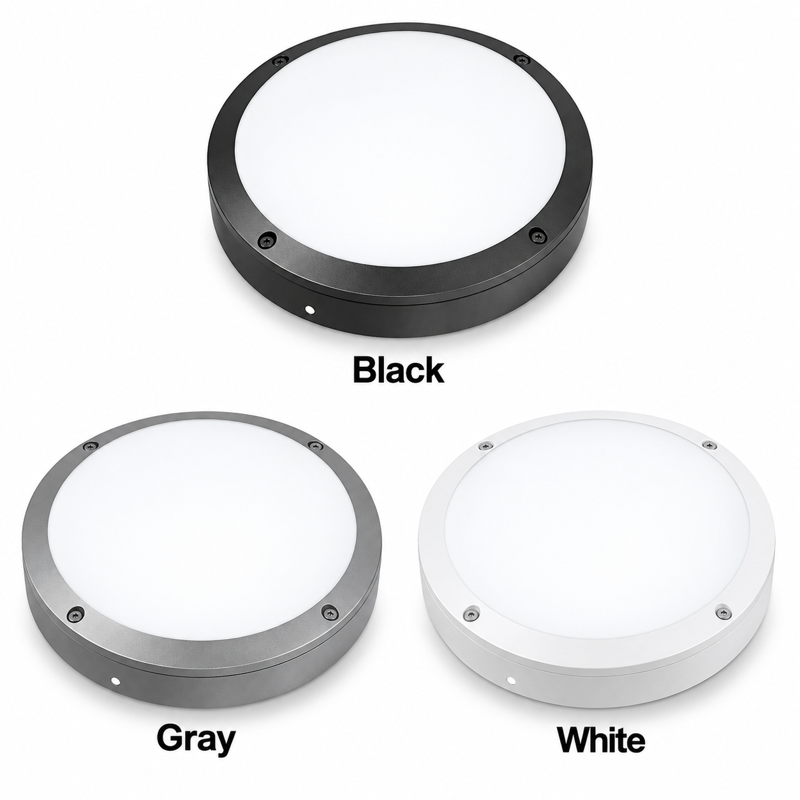

Material and Finish (Body)-Diecast Aluminium, White,Black
IP Level-IP65
Working temperature--20°C~50°C
Working hour-50000 Hrs (80000Hrs on request)
ELECTRICAL PARAMETERS
Input voltage-220-240 VAC, 50/60 Hz/24Vdc
Power-12W,16W,20W,30W,35W
Control Type-On/ Off , Dimmable
OPTICAL PARAMETERS
Light Source-LED SMD
Color Temperature (CCT)-2700K/3000K/4000K/5000K/ 6500K
Color Rendering Index (CRI)->80,>90
Beam Angle-100°
Luminous output-135lm/W ( ± 5 %)
SDCM- <3
WARRANTY
5 years Warranty
CERTIFICATES
